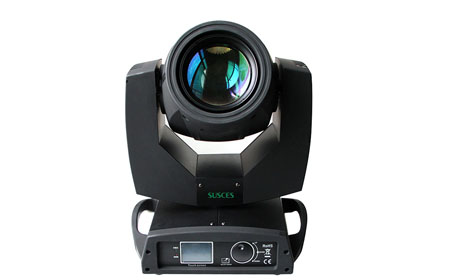

230W beam moving  head light

Product parameters:

 6/20 channel selection mode. To

Light bulb Model: YODN OSRAM 7R

Power: 230W luminous flux of 7950lm,

Color temperature up to 8000K.

? Color plate: a color plate, each color plate consists of 14 color patches,

? Pattern plate: 17 pattern effects.

Effect wheel: can do 8 prism or 16 prism, the effect of moving, atomization function.

0-100% mechanical dimming, support for mechanical strobe and adjustable speed strobe, support strobe macro function.

Lens group optical system, electric focus, beam angle 0 ~ 4 °.

With a photoelectric reset system, reset can be automatically retrieved when an accident occurs.

Horizontal 540 °, resolution 8Bit / 16Bit

Vertical 270 °, resolution 8Bit / 16Bit.

Overheating protection.

Power supply: 100-240V, 50 / 60Hz

Power: 380W

IP protection class: IP20

Inductive ballast and AC / DC switching power supply. Use occasions: 230W beam light is in the 200W beam light on the basis of evolution, more than 200W beam light,

It main advantage is mainly in the lens and lighting system, using a combination of light and combination lens combination, Philips high-brightness light bulbs,

Changed the traditional cumbersome 1200W moving head to remind, commonly used in a variety of wedding, performances, luxury bars, live television,

Nightclubs, luxury KTV and other places. The company free production of various stage program

Features: high brightness, rich colors
